GUIDE RAILS … one piece and extendable

/GUIDE RAILS … one piece and extendable
GUIDE RAILS … one piece and extendable 2018-03-21T13:49:17+00:00

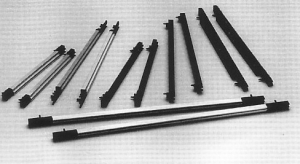

Snap-in rails which locate in pre-punched holes within the extruded horizontal rails provide guidance for Printed Circuit Board and Plug -in Modules. Guide rail types available to suit different applications are as follows:

EUROCARD GUIDE RAILS
To suit 160 and 220 deep Printed Circuit Boards and Plug-in Modules of Eurocard height. The 220 depth has a heavy duty version designed to withstand heavier loads across the span.

For PCB and Plug-in Module sizes outside the Eurocard standard, extendable Guide rails allowspanning any depth in Eurocard height and non Eurocard using end-caps that interconnect with an extruded intermediate section, cut to suit reverse side of the front panel.

All Eurocard guides and end-caps are available in long and short nose, long nose for use with PCB ejector levers whilst the short nose are used where EMC panels are being fitted and/or additional component clearance is required on the reverse side of the front panel.

Anti-vibration protrusions are integral to the mouldings to protect the PCB and Plug-in modules during operation or transportation.

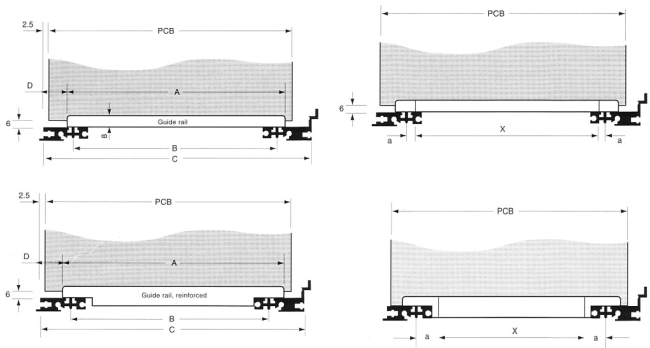

ONE PIECE GUIDES – EUROCARD
PCB
TYPE
A
B
C
D
160
SN
141,2
123,2
172,3
14,0
LN
155,2
123,2
172,3
7,0
220
SN
201,2
183,2
232,3
14,0
LN
215,2
183,2
232,3
7,0
TYPE
DEPTH
160
220
STD SN
69174G
69175F
LN
69177B
69178E
HD LN
67189A
LOW PROFILE
65610F
65611D

EXTENDABLE GUIDES – EUROCARD

a
x
EURO
7,0
PCB – 50
LOW PRO
14,0
PCB – 65
TYPE
END CAP
EXTRUSION 1M
(PAIR)
ALUMINIUM
PLASTIC
EUROCARD SN
69173R
68676X
87045H
EUROCARD LN
69176D
LOW PROFILE
68153R
