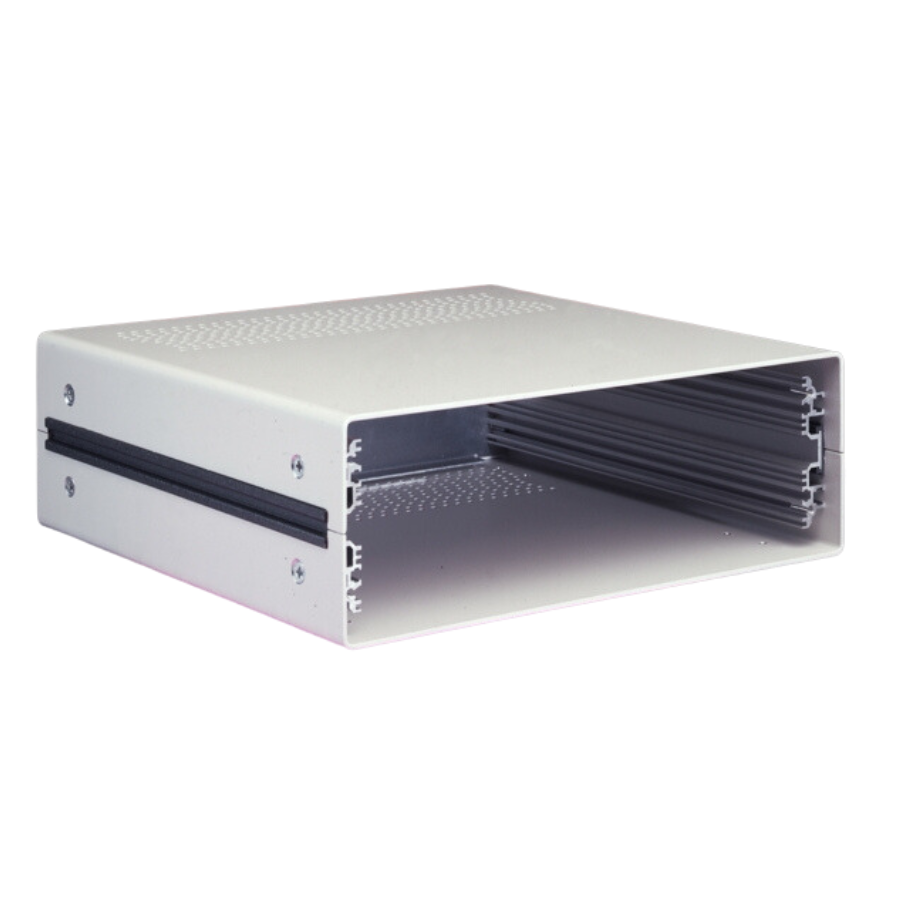

Where the subrack has a dual role of both rack mount and desk top, we offer NETCASE. This system allows the basic case to be fitted with a range of subrack components so that the finished unit has a stylish presentation.
Measuring and control technology, peripheral devices, laboratory equipment, medical equipment.
|

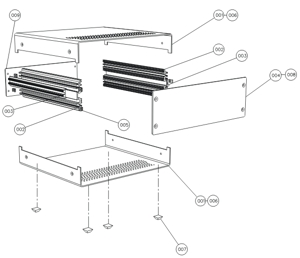

Item
|
Description
|
Qty
|
|
001
|
Top / Bottom Cover |
2
|
|
002
|
Side Extrusion |
2
|
|
003
|
Trim Extrusion |
2
|
|
004
|
Blank Panel |
1
|
|
005
|
M4 Nut & Plastic Saddle |
8
|
|
006
|
Screw M4 x 8 C’sk Pozi |
8
|
|
007
|
Rubber Feet |
4
|
|
008
|
Screw M4 x 12 C’sk Pozi |
4
|
|
009
|
Rear Panel |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

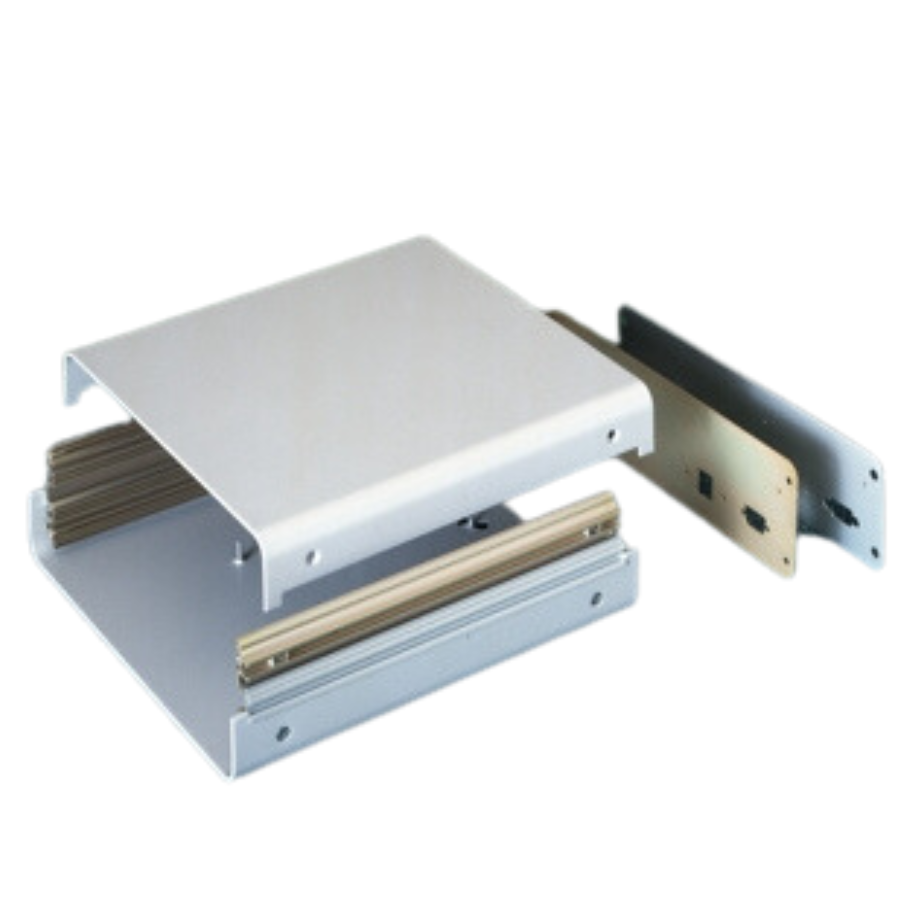

Vertical PCB, Subrack Version
|
|||
|
Pt No
|
H
|
W
|
D
|
|
65514B
|
3U
|
84HP
|
160
|
|
65515M
|
3U
|
84HP
|
220
|
|
65516E
|
3U
|
84HP
|
280
|
|
Desk Top/Rack Mount
|
|||
|
Pt No
|
H
|
W
|
D
|
|
65517R
|
2U
|
19″
|
280
|
|
65518G
|
2U
|
19″
|
340
|
|
65519F
|
3U
|
19″
|
280
|
|
65520D
|
3U
|
19″
|
340
|
|
65521B
|
4U
|
19″
|
280
|
|
65522M
|
4U
|
19″
|
340
|
|
Connector Mtg Plates
|
|||
|
97712G
|
16HP
|
3U
|
3 rows
|
|
16HP
|
6U
|
3 rows
|
|
|
20HP
|
3U
|
4 rows
|
|
|
20HP
|
6U
|
4 rows
|
|
|
24HP
|
3U
|
5 rows
|
|
|
24HP
|
6U
|
5 rows
|
|
|
Feet
|
|
|
97713F
|
Tip-up Foot set |
